Focus items, also commonly known as pop-ups, modals, or lightboxes, are often used to present a specific marketing message to website visitors. In Campaign Studio, you can select from a variety of focus item styles, goals, and engagement techniques.
To create a focus item:
Log in to Campaign Studio.
In the left navigation pane, click Channels > Focus Items.
Click +New.
General Options
Name: Specify a name for the focus item.
Website: Specify the page URL where you want to display the focus item. Campaign Studio displays a preview of the page in the focus item builder.
Description (optional): Specify information about the focus item, such as the page it will be on, how it will engage, and its goal, to help other users understand the purpose of the focus item.
Category: Select a group to organize your emails based on your goals, campaigns, and other categories. For more information, see Global Categories.
Published: Set this toggle bar to Yes to publish a focus item. Unpublished focus items are not displayed on any pages, even if the code exists on a page.
Publish at: Set the date and time you want the focus item to publish. This helps to control relevance, and does not require you to manually publish focus items at the right time.
To schedule a focus item to publish at a specified date and time:
Click the Publish at (date/time) box and select your preferred date and time from the Date and Time picker.
Set Published to Yes.
Campaign Studio marks the focus item as Pending and publishes it at the scheduled date and time.
Unpublish at: Set the date and time you want a focus item to unpublish. item to be inactive. This helps to control relevance, and does not require you to manually unpublish focus items at the right time, such as at the end of a marketing campaign.
To schedule a published focus item to unpublish at a specified date and time:
Click the Unpublish at (date/time) box and select your preferred date and time from the Date and Time picker.
Campaign Studio unpublishes the focus item at the scheduled date and time.
Important
The Date and Time picker shows the date and time according to the default timezone set for your user’s profile in System Settings. Therefore, before scheduling a focus item to publish or unpublish, you must check the default timezone.
Google Analytics UTM Tags: Campaign Studio supports UTM tagging in emails, focus items, and landing pages. Any UTM tags with values populated are automatically appended to the end of any links used in the focus item.
Builder
After you specify the general information for the focus item, click the Builder option in the top right corner. If you have specified a URL in the Website field on the details page, the system displays a preview. Otherwise, the website might block iframe previews. Hence, you must add the focus item to a development or staging environment (if available) to see the preview.
Note
The preview does not appear until you select a style.
You can create the focus item on the sidebar on the right, while the preview area lets you see what the focus item will actually look like on your website.
What should the focus be?
Types of focus items
Collect Data: This option presents a form within the focus item, enabling you to gather more information about your website visitors. A successful conversion on this type of focus item is a form submission.
Display a notice: This option enables you to present a message to your website visitors. There is no conversion for this focus item type.
Emphasize a link: This option enables you to drive website visitors to a particular page. That page may be for a specific event, offer, or something important to your marketing strategy. A successful conversion on this type of focus item is a link click.
Engagement options
Each of the three types of focus items has the same options for how and when it should appear.
Animate?: Set this toggle bar to Yes to ensure that a slide-in animation appears along with the focus item. Alternatively, set this to No to ensure that only the focus item appears.
When to engage?: Select one of the following options that determines when a contact can view the focus item.
Upon arrival: When a web visitor lands on the page
After slightly scrolling down: When a web visitor moves down the page a little bit
After scrolling to middle: When a web visitor scrolls down the page and reaches halfway down the page
After scrolling to bottom: When a web visitor scrolls all the way to the bottom of the webpage
Visitor intends to leave: When a web visitor’s cursor crosses over the address bar, from the page to the tabs (either to close the tab or window or move to a new tab)
Timeout before engage: Set the delay (in seconds) after reaching the option selected in When to engage. For example, if you set When to engage? to Upon arrival and Timeout before engage to 2 seconds, the focus item appears two seconds after the visitor arrives on the page.
How often to engage?: Set the frequency with which Campaign Studio displays the focus item on the site. The available options are:
Every page
Once per session
Every 2 minutes
Every 15 minutes
Once per hour
Once per day
Stop engaging after a conversion? (only for Collect Data and Emphasize a Link type of focus items): Set this toggle bar to Yes to stop displaying the focus item after a form submission (for the Collect Data type) or link click (for the Emphasize a Link type). This option does not appear on the Display a notice type as there is no conversion point.
What style should be used?
Focus items can have any one of the four different appearances, each with unique configuration options.
Bar
The Bar style is a line across the top or bottom of the page that includes the content of your focus item.
Allow hide?: Set this toggle bar to Yes to ensure that website visitors view a clickable arrow on the right side of the focus item bar. Once clicked, the bar shrinks to hide the content, but the arrow is visible. One can click the arrow to re-open the bar. If set to No, the bar cannot be hidden.
Push page down?: Set this toggle bar to Yes to push the content of the page down to below the bar. If set to No, the bar covers the content on the top of the page.
Make sticky?: Set this toggle bar to Yes to let the bar appear at the top of the page even as the visitor scrolls down. If set to No, the bar is visible at the top of the page when the visitor scrolls all the way to the top.
Placement: Select this option to ensure that the focus item bar appears at either the top or bottom of the page.
Note
If you select bottom, the options above are reversed. For example, if the Placement is set to bottom and Push page down? is set to Yes, the bar pushes the bottom content of the page up above the bar. If Push page down? is set to No, the bar covers the content at the very bottom of the page.
Size: Specify the thickness of the bar and font size. The two options are large (50px height and 17pt font) and regular (30px height and 14pt font).
Modal
The Modal style is the most commonly used style and is often referred to as a pop-up, lightbox.
The modal is a small box that appears aligned horizontally centered on the page. The content of the main page is darkened when the focus item is active, to draw attention (focus) to the pop-up.
Visitors can close this focus item type with the X button in the top right corner of the modal.
Placement: Select if you want the modal to appear at the top of the page, in the middle, or at the bottom of the page.
Notification
The Notification style is a small box and can be referred to as a pop-up.
Unlike the modal, the positioning is in one of the four corners of the page and the main page content is not darkened behind the focus item.
Visitors can close this focus item type with the X button in the top right corner of the notification.
Placement: Select if you want the notification to appear in the top left, top right, bottom left, or bottom right of the page.
Full Page
This focus item type completely takes over the page, hiding the rest of the page content until the visitor clicks the X button in the top right corner of the focus item.
There are no additional configuration options for the full page focus item.
Colors
There are four color options on focus items that you use to customize the look of the item. For all four options, you may use the color picker or enter a hex code.
Primary color:
For the Bar style, the primary color is the background color of the bar.
For the Modal, Notification, and Full Page styles, the primary color provides an outline around the focus item with a thicker line on top than on the other three sides.
Text color: The color of the headline text entered in the Content section of the focus item editor.
Button color: The background color for the button on the Collect Data or Emphasize a Link focus item types. This option is not available for the Display a notice focus item type.
Button text color: The color for the button text on the Collect Data or Emphasize a Link focus item types. This option is not available for the Display a notice focus item type.
Content
To customize the focus item, you can choose from three content editing modes. All three modes support custom CSS.

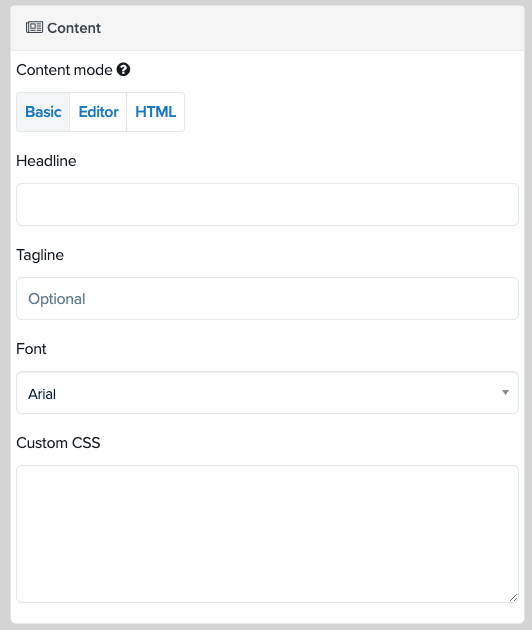

Basic
This editor mode offers a few fields, depending on the focus item type, and automatically enters the content in the focus item.
Headline: Specify the main text to provide with the focus item. Draw your visitors’ attention with this text.
Tagline (only for Emphasize a Link type): Specify a second line of text giving your visitors a reason to click the link. This field is optional.
Font: Select an option from one of the several available fonts to use for the text display. The font list is not customizable.
Select the form to insert (only for Collect Data type): Select the form, built in Campaign Studio, that should be used for the focus item. For styling and formatting reasons, you may want to build a form specifically for the focus item, adding styling to the Attributes tab on the form fields, even if a similar form appears in other locations on your site.
Link text (only for Emphasize a Link type): Specify the text that should appear on the focus item’s button.
Link URL (only for Emphasize a Link type): Specify the URL where you want to drive visitors to, with the focus item.
Open link in a new window? (only for Emphasize a Link type): Set this toggle bar to Yes to open a new tab for the destination page when visitors click the focus item’s button. If set to No, the target page opens in the current tab.
Editor
This editor mode uses the same WYSIWYG editor used for global tokens, dynamic web content,
HTML
This editor mode presents a blank field to write or paste the HTML code for a fully customized focus item.
Note
If you switch content editing modes, ensure that you clear the content from the previous editing mode. If you do not do so, Campaign Studio may not display the final intended content.
Using focus items
Once you build your focus item content and the same is ready to go on your site, set the Published toggle bar to Yes or set a publish at date and time and click Save and Close. If you are not ready to publish yet, you can add the code to your site and publish the focus item later. Unpublished focus items are not displayed on any page, even if the code for the focus item exists on a page.
On a website
Note
Adding a focus item to your website may require assistance from other members of your organization, such as your web development team.
On the focus item detail page, you see a box in the top right corner. Copy the code snippet and paste it onto your page before the closing body tag.
Note
You must specify your website’s domain in the instance’s CORS settings for the focus item to appear. To check this setting or add the domain, click Settings > Configuration > System Settings > CORS Settings, set Restrict Domains to Yes, and specify your site’s domain. Alternatively, set Restrict Domains to No and do not specify your domain.
This is to ensure that other websites cannot add your focus item, which might result in spam form submissions or website traffic.
In a campaign
You may also display the focus item without pasting the code on your site. Within a campaign, add a decision for Visits a Page, select the action option: Show Focus Item, choose the focus item you want to display once a visitor lands on the page specified in the decision.
Warning
Acquia is aware of an issue where the Show Focus Item campaign action does not work properly
On a landing page
You can add a focus item to a Campaign Studio landing page. In any text block or code mode block, use the shortcode {focus=ID#}, replacing ID# with the ID number of the focus item you want to display.
In dynamic web content
To add a focus item to dynamic web content, you must use the {focus=ID#} shortcode and replace ID# with the ID number of the focus item you want to display.
Testing focus items
Campaign Studio displays the preview of the focus item when you start building the focus item. The preview depicts the look and feel of the focus item. You can add the focus item code to your page or site in a dev or staging environment to test the feature thoroughly.
The following is a checklist of items to consider testing:
Focus item appears when it is expected to appear.
Focus item appears with the right content. There might be issues if you use multiple content editing modes.
Focus item stops engaging after a conversion.
Form appears correctly on the page and you can submit the form successfully.
The link appears at the right place.
To verify if a focus item is displayed properly from a campaign action or if it stops engaging after a conversion, you must be tracked as a known contact. The first steps for both tests are the same:
Create a form in Campaign Studio. Email address is the only necessary field.
Add the form to a Campaign Studio landing page or your website.
Open the page where you have added the form in an incognito window or separate browser from where you are logged into Campaign Studio. As page hit activity is not tracked in browsers where a user is logged in, this step is critical to ensure that you are tracked properly.
Keep that browser window open to continue testing.
To test the campaign action, add your contact to the campaign you want to test.
Ensure that if there are conditions in the campaign prior to the Show Focus Item action, the contact record reflects the proper values for such conditions to lead to the focus item action.
Stay in the incognito window for any page hits or other actions you need to perform to go down the proper yes/no paths to reach the focus item action.
Once you have made the decision to visit a page that comes immediately before the focus item action, visit a page tracked with your Campaign Studio tracking code. If the decision specifies a particular landing page or URL(s), visit the specific page.
The focus item appears, if the configuration is done correctly.
To test if a focus item stops after a conversion, navigate to a page where the focus item is expected to display. Use the incognito window where you have identified yourself using the form.
Depending on the selected type, either click the link or submit the form on the focus item to complete a conversion.
Navigate away from the page or go to a different page where the focus item is expected to appear.
The focus item should not appear.
Measuring success
For focus items where you select the type as Emphasize a Link, Campaign Studio displays the link on the focus item detail page. You can click the number in the Unique Clicks column to view the list of contacts who have clicked the link.
If you change the link in the focus item, Campaign Studio lists all the links. Hence, you can view the links that were clicked from the focus item.
Additionally, UTM tags on focus items apply to both link tracking and form submissions. For focus items used to collect data, Acquia recommends using a form submit action to record UTM tags.
